MOJAVE

Titanium Framelock Folder

ETA: When it is ready.

Specifications

THE FOLLOWING SPECIFICATIONS ARE ESTIMATED BASED OFF THE MODELS

  • Pivot Design: Ceramic ball bearings
  • Weight: TBD oz
  • Total Length (Closed): 4.9 in
  • Total Length (Open): 8.40 in
  • Blade Material: 20 CV @ 61 HRC +/- 1
  • Heat Treat: Every blade is tested before assembly
  • Blade Thickness: 0.125 in
  • Thickness Behind the Edge (Belly): 0.011 - 0.015 in
  • Blade Length: 3.45 in
  • Sharpened Edge Arc Length: 3.4 in
  • Handle Material: Grade 5 Titanium
  • Handle Style: Sandwich
  • Handle Thickness at Body: 0.40 in
  • Pivot Height: 0.44 in
  • Thickness at Clip: 0.52 in
  • Hardware: T15
  • Deep carry pocket clip

Designed, manufactured and assembled in Phoenix, Arizona

Prototype 2

Completed December 2024

Pending Revisions:

  • Adjusting lock bar insert fit.
  • Grinding detent ball flat.
  • Moving detent track to be fully under the handle scale.
  • Aligning and refining logo on the pivot.
  • Increasing clip height for easier pocketing.
  • Moving plunge line out from under the handle scale.
  • Adjusting clip to scale fitment.
  • Splitting the difference on the flipper tab.

Prototype 2 Additional Images

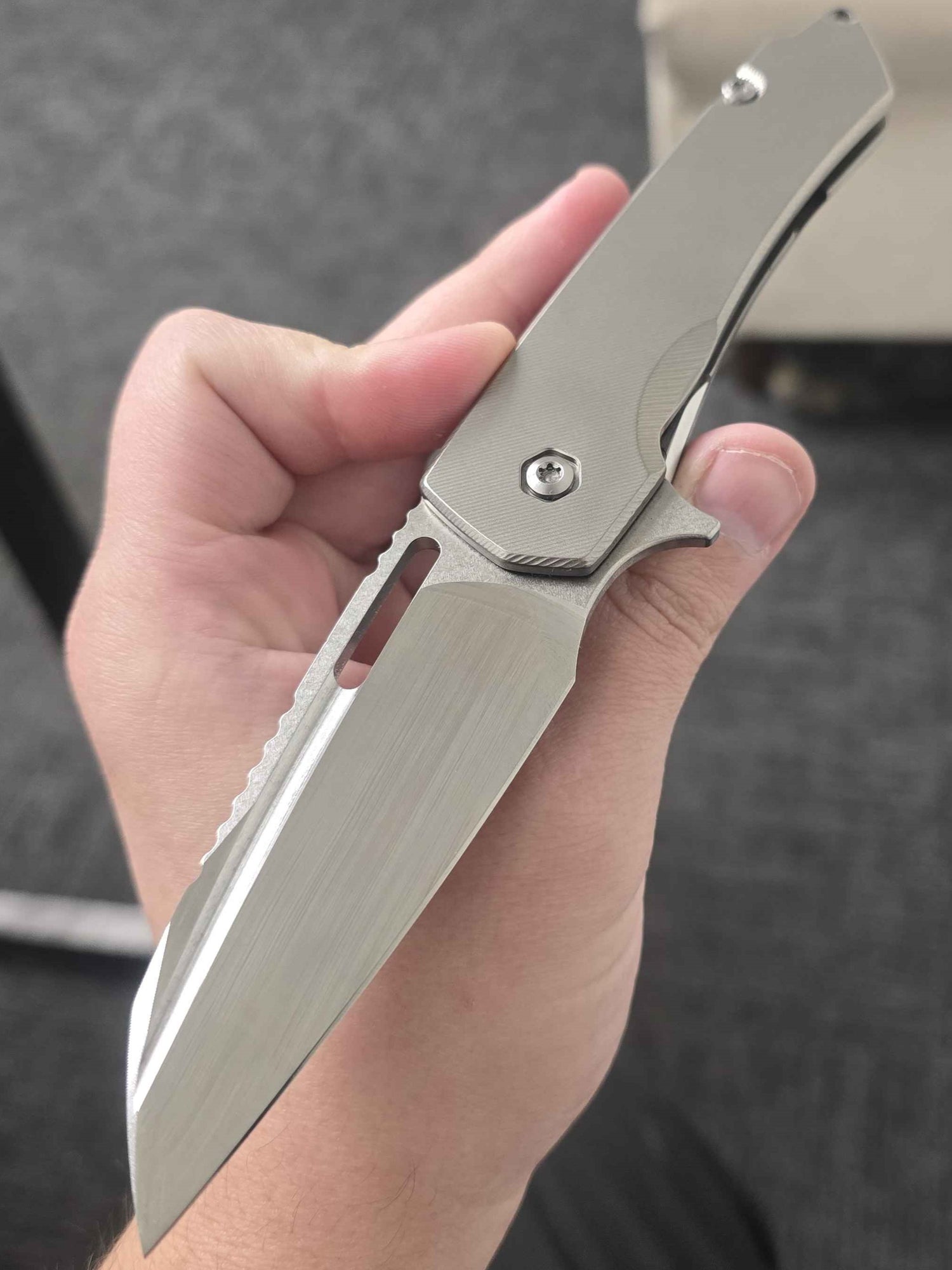

Prototype 1

Completed October 2024

Pending Revisions:

  • Removing through hole in blade
  • Enclosing Body screws
  • Revised lock bar access
  • Revised clip mounting system
  • Refining flipper tab shape
  • Refining choil length and depth

Framelock

The Mojave is our entry into the world of Framelock folding knives. This is a competitive market but we felt we would be able to provide something unique to the space. The framelock folder is the benchmark for many knife brands. The Mojave is our best foot forward to this test.

20 CV

20 CV has excellent wear resistance, allowing it to hold an edge for an exceptionally long time. 20 CV is the choice for a steel wear performance in the first focus.

Sandwich Construction

The Mojave is assembled with two slabs of titanium and a backspacer. This construction method allows us to flex our machining and design prowess.

Ceramic Ball Bearings

The Mojave is assembled with ceramic ball bearings, a first for MachineWise. This pivot allows for supered action and excellent functionality. In this space we felt that a bearing system would function better with the locking mechanism used.

First production Mojaves will be made using Skiff bearings.

Made in USA

Proudly machined, assembled and finished in Phoenix, Arizona. Our small five-person team puts 110% effort into every product that leaves our door.
